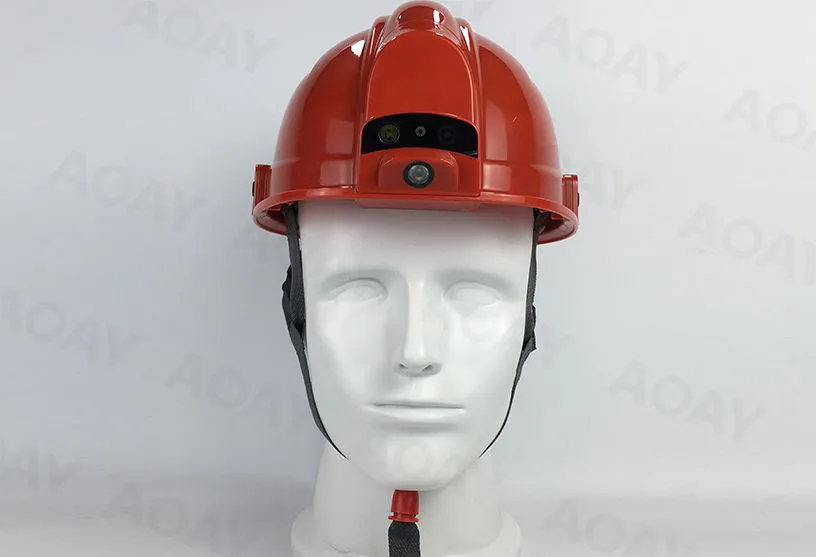

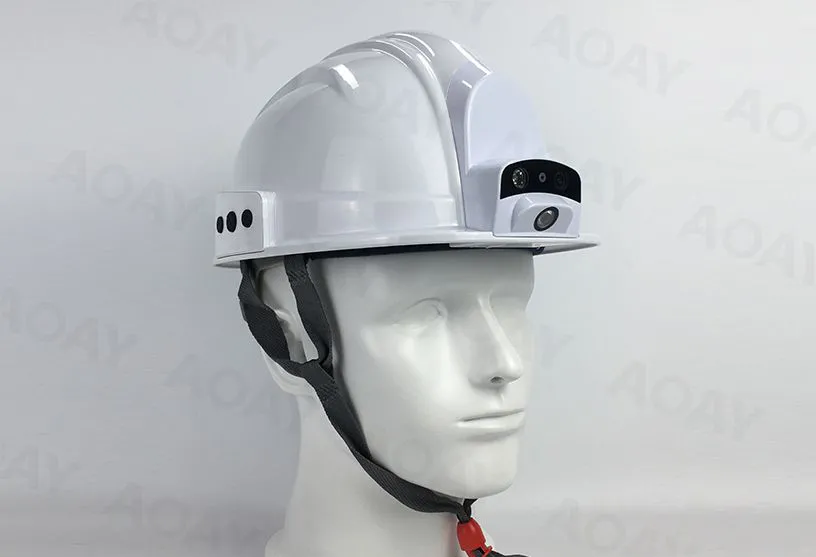

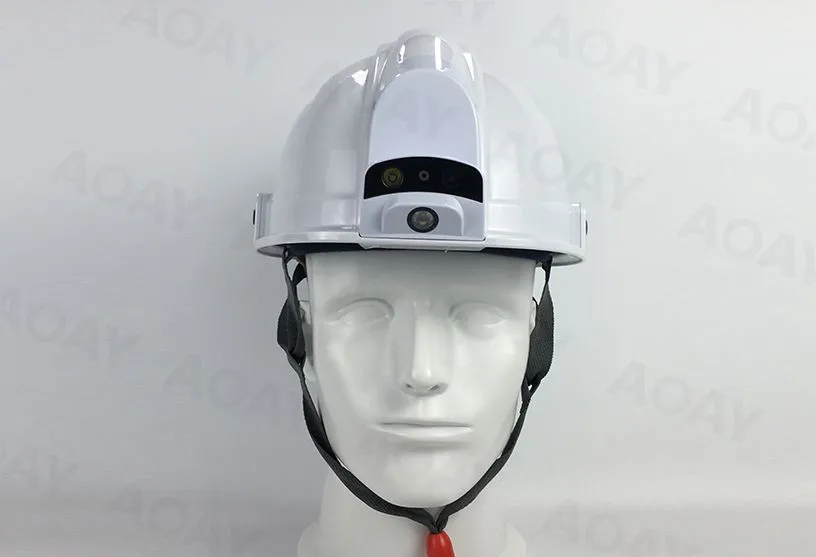

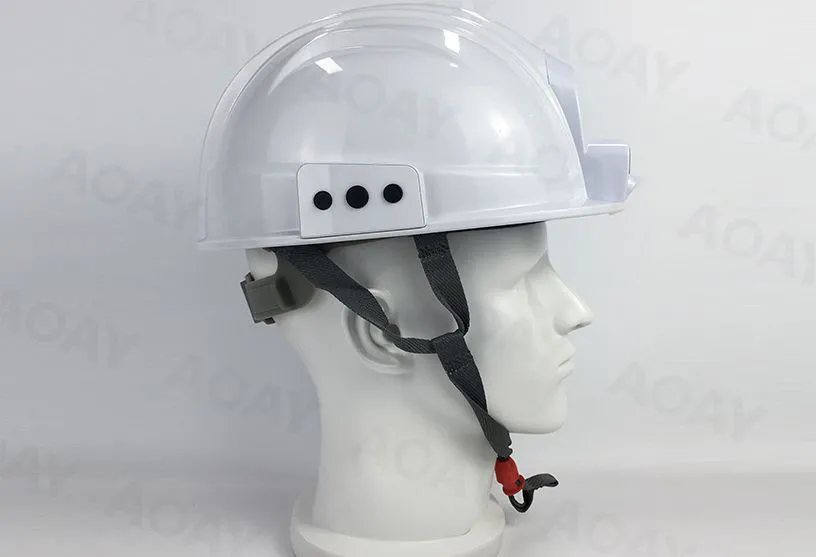

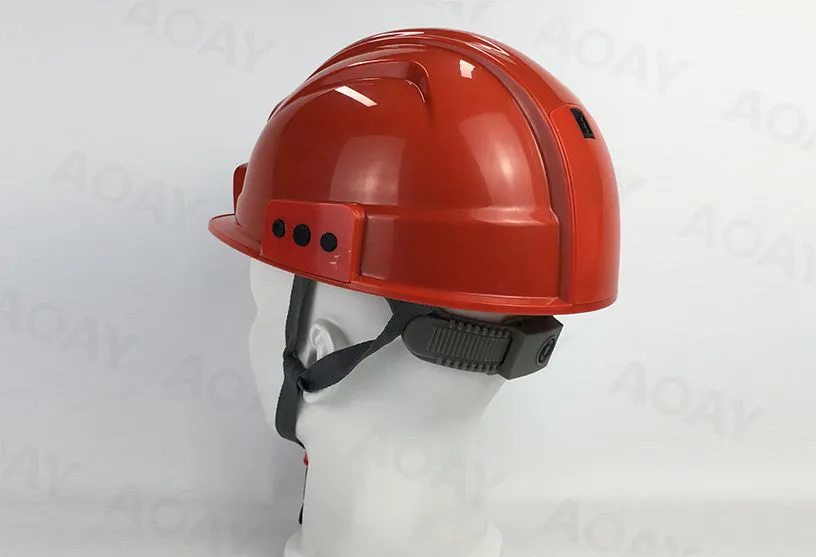

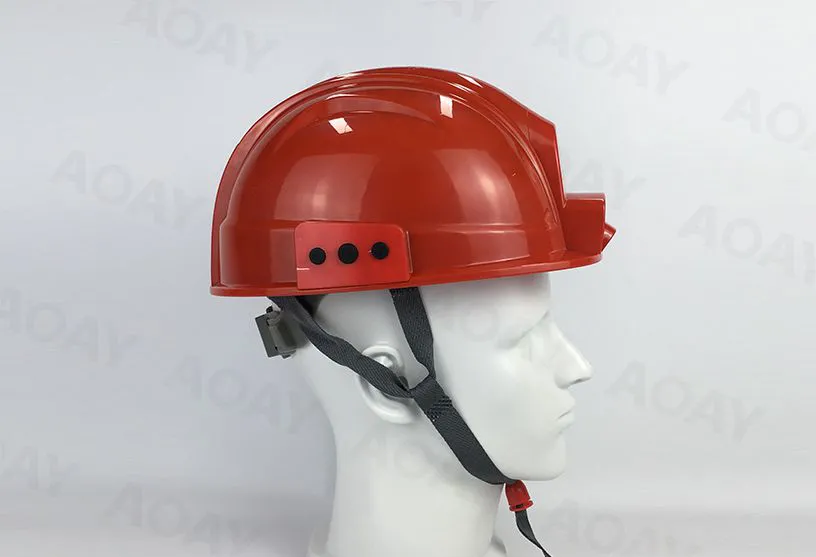

H7B Smart Head Hat integrated with multi-communication protocols (4G, Wi-Fi, Bluetooth), built-in safety monitoring sensors (helmet removal detection, silent alarm, impact sensing), and multi-mode GPS/BeiDou positioning chip.
Delivers high-definition imaging, superior outdoor visibility, and extended battery life to enforce safe operations while enabling real-time command management and remote voice guidance in industrial environments.
Deployable across:
~Power grid inspection
~Construction project management
~Equipment maintenance
Serving sectors: Energy, Construction, Mining, Specialized Maintenance and so on
| Structure | |
| Size | 293x217x148mm（±3mm） |
| Weight | <630g |
| Battery replacement method | Quick-release battery design |
| Protection degree | IP66 |
| Key | 6 keys(Power, SOS, photo/video record, call, light, volume) |
| Operating Environment | within -20℃ to 55℃(-4℉ to 131℉), humidity <90% |
| Explosion-Proof Rating | Exib IIB T4 Gb |
| Camera | |
| Video Input | 1080P@30FPS, 720P/480P available |
| Horizontal FOV | 117° |
| Video Format | flv |
| Video Streaming | 1080P/720P/480P |
| Hardware | |
| Hardware platform | Octa-core Cortex-A55 processor(developed in China) |
| Network Bands | GSM/EDGE (900/1800MH) |
| WCDMA(B1/B8) | |
| LTE-FDD(B1/B3/B5/B8) | |
| LTE-TDD(B34/B38/B39/B40/B41) | |
| Storage | 2GB+16GB |
| Extended Storage | support Max 256GB |
| Camera | 13 Megapiexls |
| Fixed focus | |
| Microphone | Dual microphones |
| Speaker | 4Ω2W 3516 |
| Indicator light | Green light*1 (working), Blue light*1(charging) |
| Bluetooth | BT5.0 |
| GNSS(Global Navigation Satellite System) | GPS + BeiDou |
| WIFI | support IEEE802.11 ac/a/b/g/n /2.4G、5G、 WIFI |
| Sensor | Distance Sensor: Helmet Removal Alarm |
| Acceleration Sensor: Impact Alarm, Inactivity Alarm | |
| Magnetometer Sensor: Direction Monitoring | |
| Barometric Pressure Sensor: Altitude Monitoring | |
| Proximity Sensor: High Voltage Detection (220V, 10kV, 35kV, 110kV, 220kV) | |
| Connect/port | SIM slot: Nano SIM card |
| TF slot: Micro SD card | |
| Type-C port (USB 2.0) for charging and data transmission | |
| Fill light | 1W LED*2(spotlight 30°/ diffuse light 60°) |
| Laser light | support, positioning available when take video |
| Charging | Max 10W, use 5V charger |
| Battery | 5260mAh replacement battery/rechargeable battery units, max 10W, use 5V charger |
| Software | |
| Monitoring system | Android10.0 |
| Safety Monitoring | Hat removal monitoring, working at height monitoring, impact monitoring, inactivity monitoring, proximity monitoring, restricted area monitoring |
| Photo | Photos can be stored both locally and on the server |
| Shoot a video | Video clips can be stored both locally and on the server |
| Audio and video call | Support one-to-many and many-to-many audio and video call |
| Positioning | Support GPS/BeiDou |
| Abnormal Alarm | Low power alarm, over storage alarm |
| Voice broadcast | Voice and audio broadcast available |
| Work log Record | The devicecan record work logs of its operational status and user operation including power ON/OFF, taking photos, recording videos and alarm triggers |
| Other platform connect | Independent SDK pack, API, support connect with Protocol platform like GB28181 |
