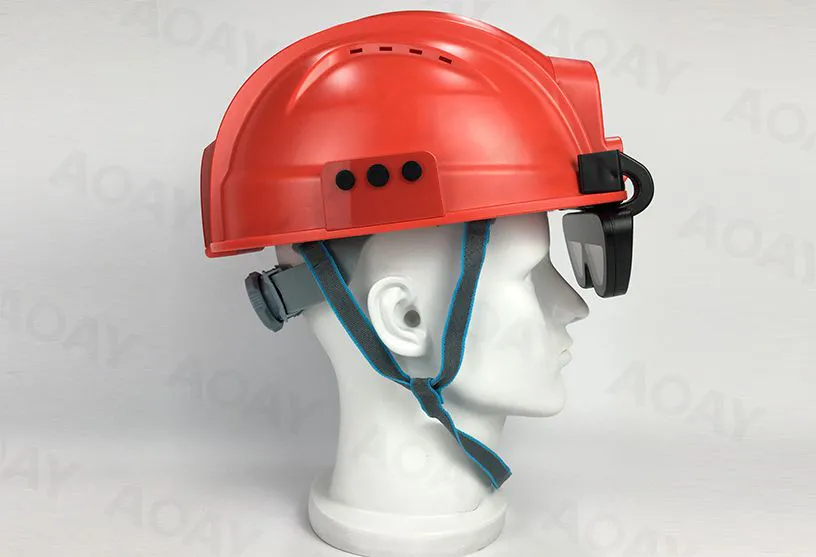

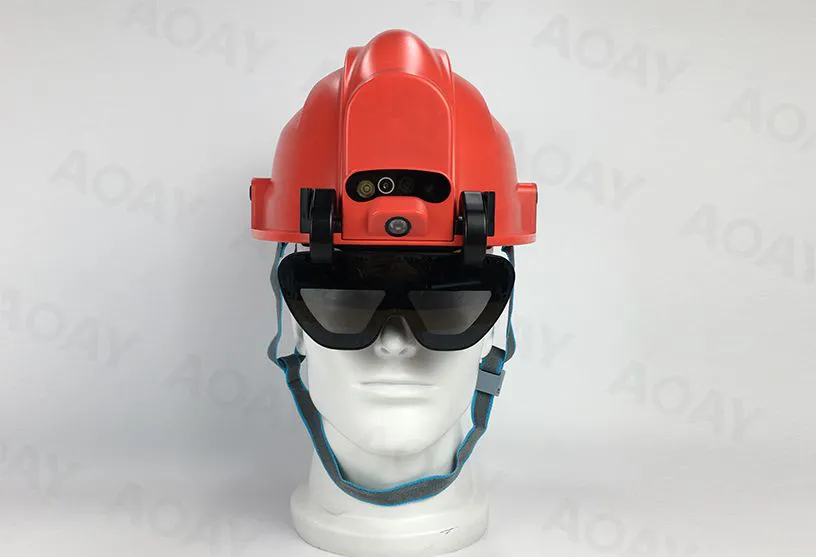

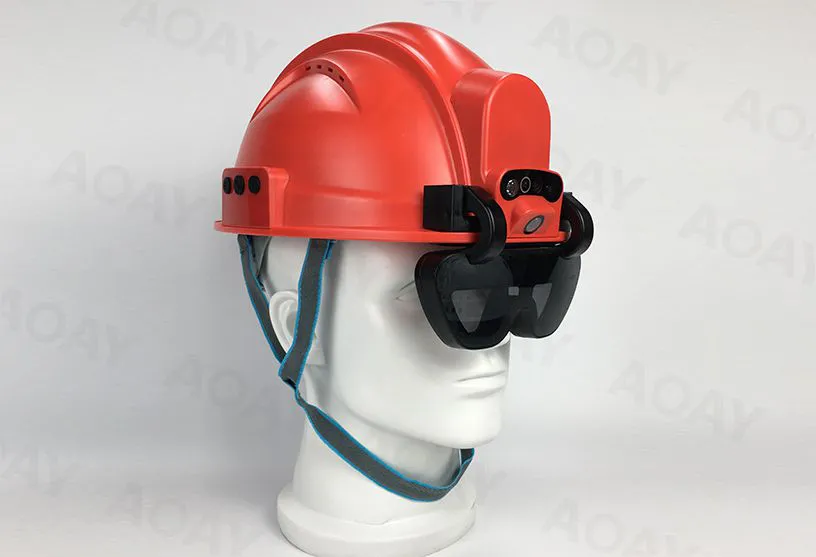

H7B Smart Head Hat integrated with AR display module and multi-communication protocols (5G, Wi-Fi, Bluetooth), built-in safety monitoring sensors (helmet removal detection, silent alarm, impact sensing), and multi-mode GPS/BeiDou positioning chip.
Delivers high-definition imaging, superior outdoor visibility, and extended battery life to enforce safe operations while enabling real-time command management and remote voice guidance in industrial environments.
Deployable across:
~Power grid inspection
~Construction project management
~Equipment maintenance
Serving sectors: Energy, Construction, Mining, Specialized Maintenance and so on
| Structure | |
| Size | AR glasses off work：315mm*220mm*152mm（±3mm） |
| AR glasses on work：300mm*220mm*214mm（±3mm） | |
| Weight | 870g |
| Battery replacement method | Quick-release battery design |
| Protection degree | IP66 |
| Key | 6 keys(Power, SOS, photo/video record, call, light, volume) |
| Operating Environment | within -20℃ to 55℃(-4℉ to 131℉), humidity <90% |
| Camera | |
| Video Input | 1080P@30FPS, 720P/480P available |
| Horizontal FOV | 110° |
| Distortion | <22% |
| Video Format | flv |
| Video Streaming | 1080P/720P/480P |
| Hardware | |
| Hardware platform | UIS7885 1*A76@2.7GHz+3*A76@2.3GHz+4*A55@2.1GHz |
| Network Bands | 5G SA/NSA: n1/ n3/ n5/ n8/ n28/ n41/ n78/ n79 |
| 5G MIMO: n1/ n41/ n78/ n79 | |
| LTE: B1/ B3/ B5/ B8/ B34/ B38/ B39/ B40/ B41 | |
| LTE MIMO: B1/ B3/ B41 | |
| WCDMA: B1/ B5/ B8 | |
| Storage | 8GB+256GB |
| Extended Storage | support Max 256GB |
| Dual Cameras | 16 Megapiexls fixed focus FOV 110° |
| 16 Megapiexls focused FOV 75° | |
| Microphone | Microphone*1 |
| Speaker | 4Ω2W 3516 speaker*2 |
| Indicator light | Green light*1 (working), Blue light*1(charging) |
| Bluetooth | BT5.0 |
| UWB | Reserved interface |
| GNSS(Global Navigation Satellite System) | GPS + BeiDou dual bands RTK |
| WIFI | 2.4 G & 5 G, 802.11a/ b/ g/ n/ ac |
| Sensor | Distance Sensor: Helmet Removal Alarm |
| Acceleration Sensor: Impact Alarm, Inactivity Alarm | |
| Magnetometer Sensor: Direction Monitoring | |
| Barometric Pressure Sensor: Altitude Monitoring | |
| Proximity Sensor: High Voltage Detection (220V, 10kV, 35kV, 110kV, 220kV) | |
| Connect/port | SIM slot: Nano SIM card |
| TF slot: Micro SD card | |
| Type-C port (USB 2.0) for charging and data transmission | |
| Fill light | 1W LED*2(spotlight 30°/ diffuse light 60°) |
| Laser light | support, positioning available when take video |
| Charging | Max 10W, use 5V charger |
| Battery | 5260mAh replacement battery/rechargeable battery units, max 15W, use 5V charger |
| Software | |
| Monitoring system | Android13 |
| AR Display | It enables human-computer interaction by combining AI algorithms such as voice commands and object recognition. |
| Safety Monitoring | Hat removal monitoring, working at height monitoring, impact monitoring, inactivity monitoring, proximity monitoring, restricted area monitoring |
| Photo | Photos can be stored both locally and on the server |
| Shoot a video | Video clips can be stored both locally and on the server |
| Audio and video call | Support one-to-many and many-to-many audio and video call |
| Positioning | Support GPS/BeiDou |
| Abnormal Alarm | Low power alarm, over storage alarm |
| Voice broadcast | Voice and audio broadcast available |
| Work log Record | The devicecan record work logs of its operational status and user operation including power ON/OFF, taking photos, recording videos and alarm triggers |
| Other platform connect | Independent SDK pack, API, support connect with Protocol platform like GB28181 |
